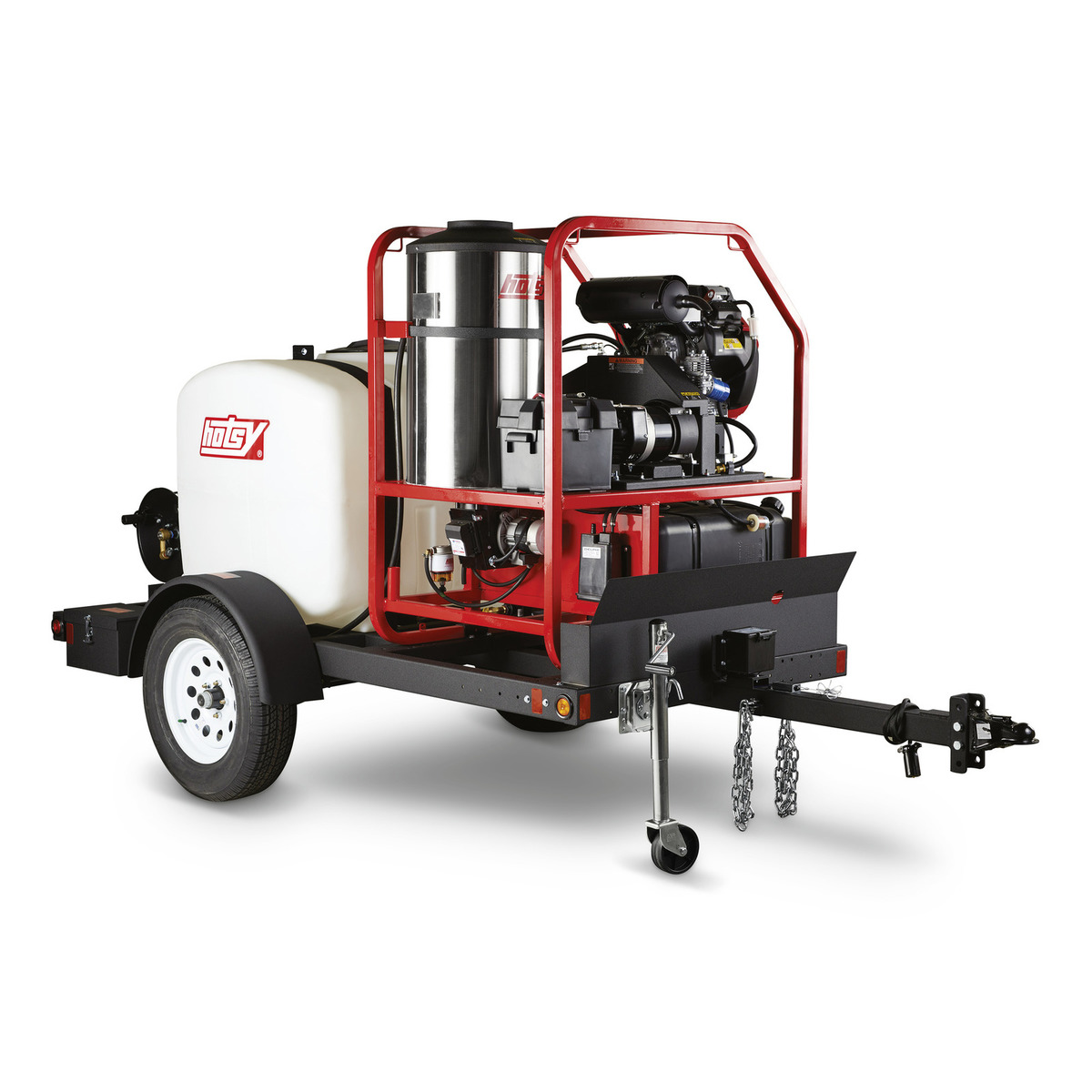

Hotsy TR-3500 Trailer System Specifications
Mobile Pressure Washer Trailer • Industrial Cleaning Systems • On-Site Cleaning Solutions
Built for Mobility, Durability, and Job Site Performance
The Hotsy TR-3500 Trailer System is engineered for professionals who need a reliable, mobile cleaning platform. Designed to support a wide range of pressure washer configurations, this trailer delivers on-demand cleaning power wherever the job takes you.
📊 Trailer Specifications
| Model | Part # | Dimensions (LxWxH) | Unit Weight | Shipping Weight |
|---|---|---|---|---|
| TR-3500 | 1.103-847.0 | 144″ x 72″ x 64″ | 543 lbs | 1043 lbs |
Trailer only – pressure washer sold separately
⚙️ Standard Features
- 200-Gallon Water Tank
- Integrated float valve for automatic fill control
- Large 7″ access port for easy maintenance
- Single Axle (3,500 lb Rating)
- Leaf-spring suspension for smooth transport
- Designed for durability on job sites
- Electric Brakes with Breakaway Kit
Standard configuration for safe towing and compliance - Heavy-Duty Trailer Construction
Built to withstand daily commercial and industrial use
🚛 Trailer Components & Ratings
- GVWR: 3,500 lbs
- GAWR: Single axle rated at 3,500 lbs
- Wheels & Tires:
- 15″ white spoke wheels
- ST205/75D15 tires
- Jack System:
- Swivel wheel jack with caster foot
- 1,000 lb capacity
- Coupler:
- 2″ ball coupler (standard)
- Dual 5/16″ safety chains
- Lighting:
- Recessed, DOT-approved lights for road safety
🔧 Available Options & Upgrades
Customize your TR-3500 trailer to meet your specific needs:
- Rock guard with wand holder
- High-pressure hose reel (100 ft capacity)
- Low-pressure hose reel (100 ft capacity)
- Hydraulic brake upgrade
- Adjustable 2-5/16″ ball hitch coupler
- 3″ lunette eye coupler
- Battery installation for pressure washer
- Mounting kits for compatible pressure washer models
- Hot top kit for vertical stack systems
🏭 Ideal Applications
Perfect for:
- Mobile pressure washing contractors
- Fleet and vehicle cleaning
- Construction and job sites
- Agricultural operations
- Industrial and municipal cleaning
🚀 Build Your Mobile Cleaning System
The Hotsy TR-3500 Trailer System provides a rugged, flexible platform for creating a fully mobile pressure washing solution tailored to your operation.
👉 Contact Us Today to configure your trailer system and pair it with the right pressure washer.

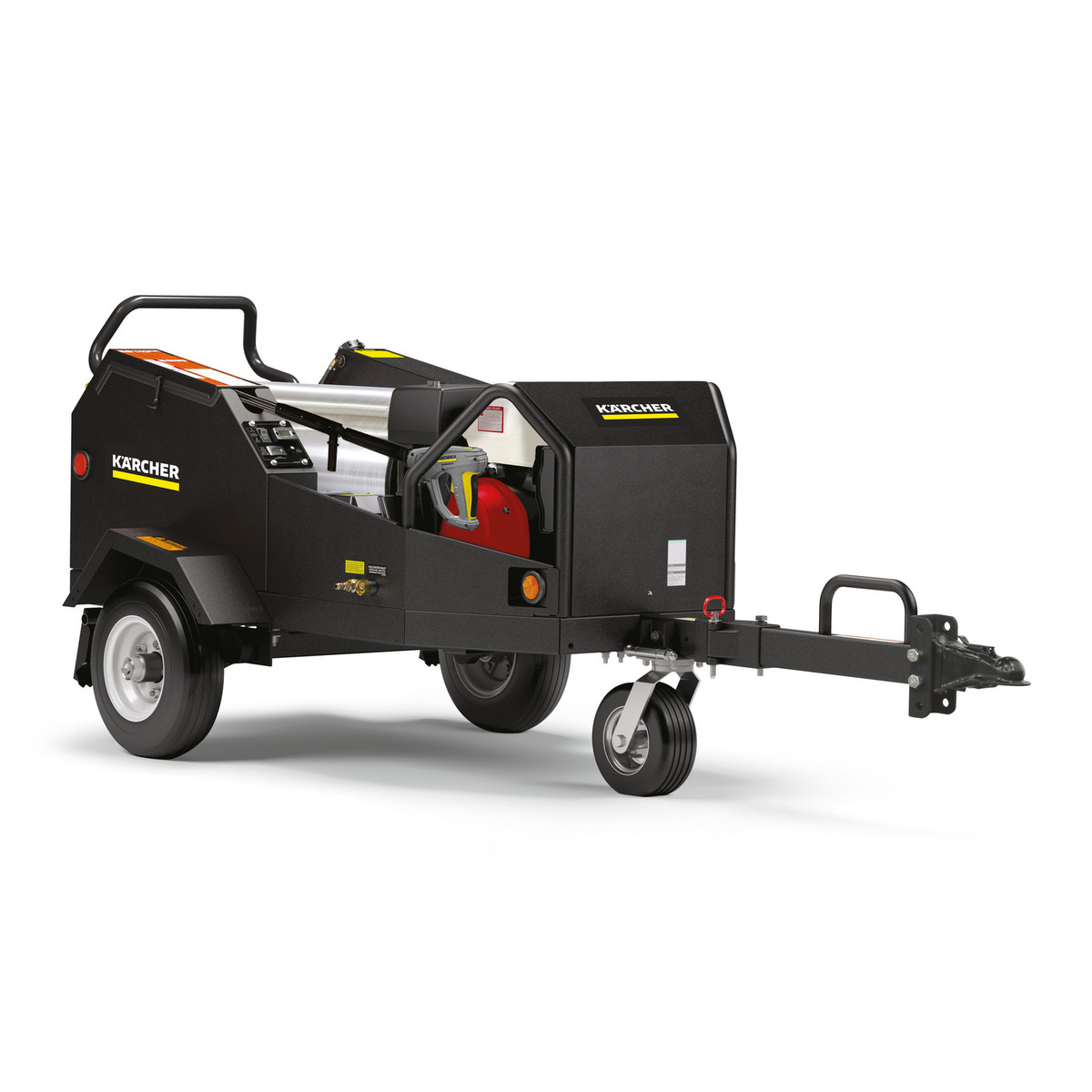

Kärcher Tule Series HDS 3.5/40 GE MT Trailer
Mobile Hot Water Pressure Washer • Trailer-Mounted Cleaning System • Industrial Cleaning Equipment
Powerful Hot Water Cleaning—Ready When You Are
The Kärcher Tule Series HDS 3.5/40 GE MT is a fully mobile, trailer-mounted hot water pressure washer designed for on-demand cleaning at any job site. Built for convenience, durability, and performance, this system is ready to deploy at a moment’s notice—simply unhitch and start cleaning wherever water is available.
🔧 Key Features & Benefits
- High-Performance Cleaning Power
Delivers up to 4000 PSI at 3.5 GPM for removing grease, oil, and heavy buildup - Reliable Gas Engine Options
Choose between Honda GX390 or Vanguard 400 engines for dependable performance - Electric Start with Manual Backup
Ensures quick startup with added reliability in the field - Hot Water Cleaning Capability
Ideal for breaking down grease, oils, and stubborn contaminants
⚙️ Built for Mobility & Ease of Use
- Trailer-Mounted Design
Fully mobile system for contractors, fleet washing, and remote cleaning jobs - Swing-Away Tongue & Lift Handle
Simplifies hookup, transport, and storage - 8-Gallon Diesel Fuel Tank
Provides extended runtime for continuous cleaning - Adjustable Thermostat
Allows precise water temperature control for different cleaning applications
💡 Operator Comfort & Efficiency
- EASY!Force Trigger Gun Technology
- Uses recoil force to hold the trigger
- Reduces operator fatigue during long cleaning sessions
- Improves comfort and productivity
📊 Technical Specifications
| Model | Part # | GPM | PSI | Drive | Engine | Start | Pump | Weight | Dimensions (L x W x H) |
|---|---|---|---|---|---|---|---|---|---|
| HDS 3.5/40 GE MT | 1.103-844.0 | 3.5 | 4000 | Direct | Honda GX390 | Electric | KS40400G.3 | 750 lbs | 100″ x 45″ x 75″ |
| HDS 3.5/40 GE VMT | 1.110-118.0 | 3.5 | 4000 | Direct | Vanguard 400 | Electric | KS40400G.3 | 750 lbs | 100″ x 45″ x 75″ |
🧰 Available Accessories
Enhance your cleaning system with optional accessories:
- EASY!Force trigger gun (North American model)
- Chemical injector kit (3–5 GPM)
- 12V battery for hot water operation
- Zinc-plated variable pressure lance
- 50 ft. high-pressure hose (6000 PSI rated)
🏭 Ideal Applications
Perfect for:
- Mobile cleaning contractors
- Fleet and vehicle washing
- Construction and heavy equipment cleaning
- Agriculture and industrial sites
- Remote locations without fixed cleaning systems
🚀 Mobile Hot Water Cleaning Made Easy
The Kärcher Tule Series HDS 3.5/40 GE MT Trailer delivers professional-grade hot water cleaning in a fully mobile package, giving you the power, flexibility, and reliability needed to tackle tough jobs anywhere.
👉 Contact Us Today to learn more or configure your mobile cleaning solution.
