Stationary Oil-Fired Water Heaters

Industrial Hot Water Systems • High BTU Output • Heavy-Duty Performance

The Stationary Oil-Fired Water Heater Series is designed for high-performance hot water generation in demanding industrial environments. Built with heavy-gauge construction and powered by an oil-fired burner system, these units deliver reliable, high-temperature output for pressure washing systems, wash bays, and industrial cleaning operations.

Engineered for durability and efficiency, these heaters provide consistent performance in applications where natural gas is not available or higher BTU output is required.

🔥 Key Features

• Oil-fired heating system for high-output hot water generation
• 115V burner system with fuel solenoid and oil primary control*
• Heavy-gauge steel construction for long service life
• High fuel efficiency design to reduce operating costs
• Exclusive cold water wrap for improved heat transfer and coil protection
• Schedule 80 heating coil for durability under high demand
• Adjustable thermostat for precise temperature control
• Flow switch for safe and efficient operation
• Integrated fuel tanks:
  • 13-gallon tank (Models 410, 510)
  • 27-gallon tank (Models 760, 1010, 1060)

🔧 Available Models & Specifications

Compact & Mid-Range Systems

410 – Entry-Level Oil-Fired Water Heater

• 310,000 BTU
• 14” coil • 8” stack
• 115V power source
• 168’ coil length • 1/2” ID • Schedule 80
• Weight: 400 lbs

510 – Mid-Range Industrial System

• 430,000 BTU
• 18” coil • 8” stack
• 115V power source
• 250’ coil length • 1/2” ID • Schedule 80
• Weight: 425 lbs

High-Capacity Industrial Systems

760 – High Output Water Heater

• 620,000 BTU
• 24” coil • 12” stack
• 115V power source
• 420’ coil length • 1/2” ID • Schedule 80
• Weight: 725 lbs

1010 – Heavy-Duty Industrial Water Heater

• 850,000 BTU
• 30” coil • 12” stack
• 115V power source
• 483’ coil length • 3/4” ID • Schedule 80
• Weight: 1,095 lbs

1060 – Maximum Output Oil-Fired System

• 1,200,000 BTU
• 30” coil • 12” stack
• 115V power source
• 483’ coil length • 3/4” ID • Schedule 80
• Weight: 1,250 lbs

🏭 Ideal for Industrial Applications

These oil-fired water heaters are ideal for:

• Industrial pressure washer systems
• Wash bays and maintenance facilities
• Manufacturing and processing plants
• Fleet and heavy equipment cleaning
• Remote locations without natural gas access

🚀 High Heat. Maximum Reliability.

With high BTU output, rugged construction, and efficient oil-fired operation, these systems deliver the consistent hot water performance required for the toughest industrial cleaning applications.

👉 Request a Quote or Speak with an Expert to select the right oil-fired water heater for your system.

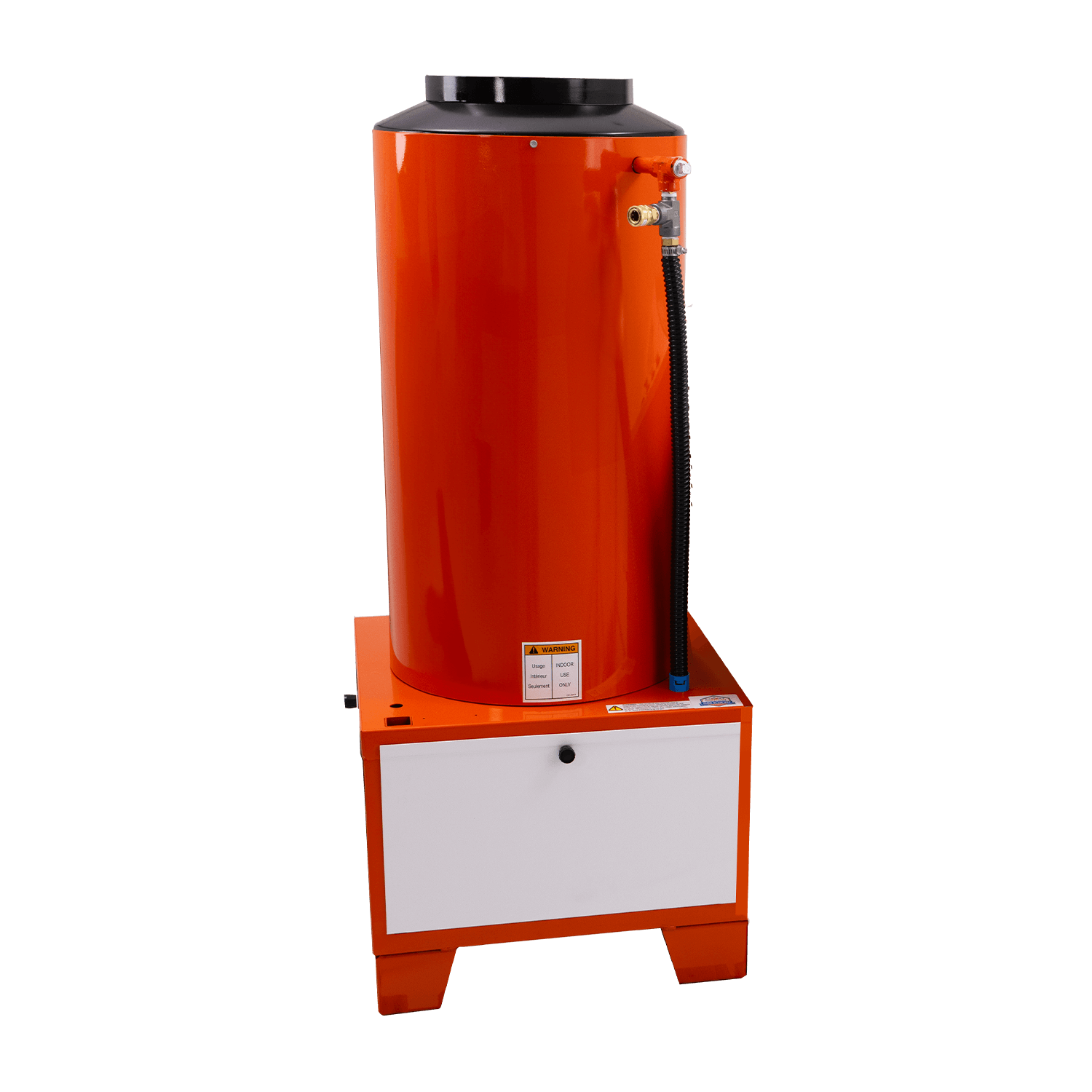

Stationary Gas-Fired Water Heaters (Natural Gas/LP)

Industrial Hot Water Systems • High-Efficiency • Fixed Installation

The Stationary Gas-Fired Water Heater Series (Natural Gas/LP) is engineered for reliable, high-capacity hot water production in demanding industrial environments. Designed for continuous operation in wash bays and facility systems, these heaters deliver consistent performance with high fuel efficiency and durable construction.

Built with heavy-duty components and advanced controls, these units are ideal for pressure washer systems, industrial cleaning, and process applications.

🔥 Key Features

• Natural gas-fired or LP water heating system for cost-effective operation
• Heavy-gauge steel construction for long-term durability
• 115V burner system with automatic ignition for reliable startup
• High fuel efficiency design to reduce operating costs
• Exclusive cold water wrap to improve heat transfer and system longevity
• Adjustable thermostat for precise temperature control
• Flow switch for safe and efficient operation
• Built for stationary industrial installations

✅ Certifications & Compliance

• ETL certified to UL-60335-1, UL-60335-2-79, and CSA standards (select models)
• ⚠️ Model 411 is not UL certified

🔧 Available Models & Specifications

Entry-Level Industrial Water Heater

411 – Compact Natural Gas/LP Water Heater

• 320,000 BTU
• 14” coil • 10” stack
• 168’ coil length • 1/2” ID • Schedule 80
• Weight: 400 lbs

Mid-Range Industrial Systems

511 – High-Efficiency Water Heater

• 415,000 BTU
• 18” coil • 12” stack
• 250’ coil length • 1/2” ID • Schedule 80
• Weight: 425 lbs

High-Capacity Industrial Systems

761 – Large-Scale Hot Water System

• 620,000 BTU
• 24” coil • 12” stack
• 420’ coil length • 1/2” ID • Schedule 80
• Weight: 725 lbs

1011 NG – Maximum Output Industrial Water Heater

• 750,000 BTU
• 30” coil • 12” stack
• 483’ coil length • 3/4” ID • Schedule 80
• Weight: 1,095 lbs

🏭 Ideal for Industrial Applications

These natural gas water heaters are ideal for:

• Industrial pressure washer systems
• Wash bays and service facilities
• Manufacturing and processing plants
• Fleet washing operations
• Equipment cleaning and maintenance

🚀 Reliable Hot Water for Demanding Operations

With high BTU output, efficient natural gas operation, and rugged construction, these systems deliver the consistent hot water performance required for industrial cleaning and processing applications.

👉 Request a Quote or Speak with an Expert to select the right stationary water heater for your system.

Horizontal Oil-Fired Water Heaters

Industrial Hot Water Systems • 12V Burner • Stationary High-Efficiency Heating

The Horizontal Oil-Fired Water Heater Series is engineered for reliable, high-output hot water generation in demanding industrial environments. Designed with a compact horizontal layout, these systems are ideal for installations where space, accessibility, or mounting configuration is critical.

Featuring a 12V DC oil-fired burner, spiral heat exchanger, and heavy-duty Schedule 80 coil, these units deliver efficient, consistent performance for pressure washing systems, wash bays, and industrial cleaning operations.

🔥 Key Features

• Oil-fired heating system with 12V DC burner for flexible installation
• Stationary horizontal design for space-saving applications
• Heavy-gauge steel construction for long-term durability
• High fuel efficiency to reduce operating costs
• Exclusive cold water wrap for improved heat transfer and coil protection
• Spiral heat exchanger (Schedule 80 rated) for maximum performance
• Flow switch for safe and efficient operation
• High-limit temperature control for added safety
• On/Off control switch for simple operation
• Oil primary control (standard on all models except 210WH)

🔧 Available Models & Specifications

Compact Industrial Systems

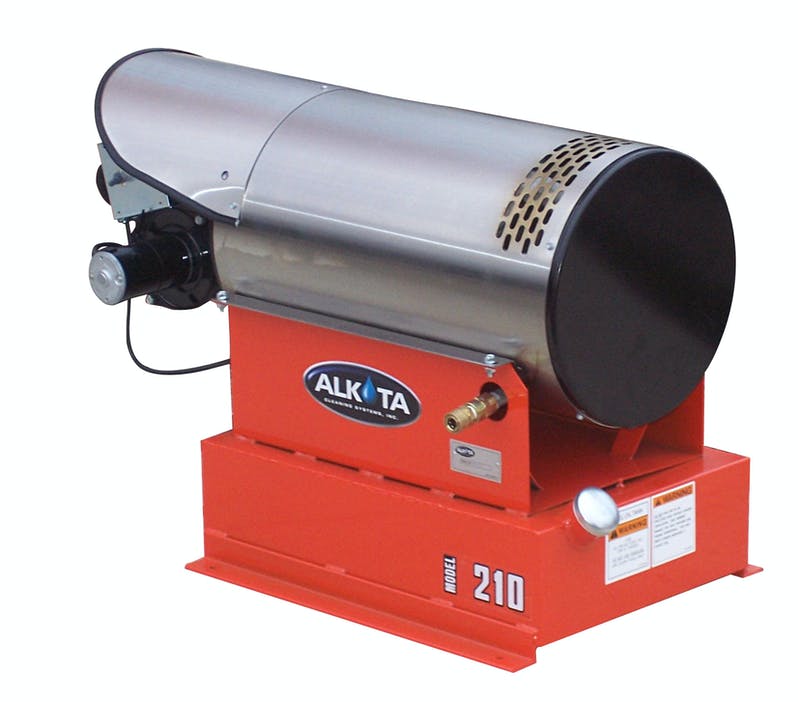

210WH – Entry-Level Horizontal Water Heater

• 230,000 BTU
• 14” coil
• 10-gallon fuel tank
• 95’ coil length • 1/2” ID • Schedule 80
• Weight: 305 lbs

Mid-Range Industrial Systems

410H – Standard Duty Oil-Fired Heater

• 320,000 BTU
• 14” coil
• 14-gallon fuel tank
• 126’ coil length • 1/2” ID • Schedule 80
• Weight: 475 lbs

510H – High-Performance Industrial System

• 550,000 BTU
• 18” coil
• 20-gallon fuel tank
• 206’ coil length • 1/2” ID • Schedule 80
• Weight: 775 lbs

High-Capacity Industrial System

760H – Maximum Output Horizontal Heater

• 760,000 BTU
• 24” coil
• 50-gallon fuel tank
• 337’ coil length • 3/4” ID • Schedule 80
• Weight: 1,150 lbs

🏭 Ideal for Industrial Applications

These horizontal oil-fired water heaters are ideal for:

• Industrial pressure washer systems
• Wash bays and service facilities
• Manufacturing and processing plants
• Fleet and heavy equipment cleaning
• Installations requiring compact or low-profile equipment

🚀 Compact Design. Powerful Performance.

With a space-saving horizontal layout, high-efficiency oil-fired heating, and rugged construction, these systems deliver the reliable hot water output needed for demanding industrial cleaning applications.

👉 Request a Quote or Speak with an Expert to select the right horizontal water heater for your system.
