Diesel Engine Diesel Fired Hot Water Pressure Washer
Super Skid HSS Series

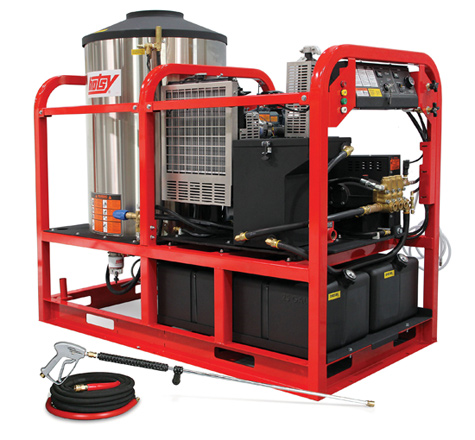

Hotsy diesel engine hot water pressure washer
HSS & HSDS Super Skid Series
Heavy-Duty Skid Pressure Washers • Industrial Hot Water Cleaning Systems • High-Flow Equipment
Maximum Power for the Toughest Cleaning Jobs
The Hotsy Super Skid HSS & HSDS Series represents the most powerful and robust lineup in Hotsy’s hot water pressure washer range. Designed for extreme industrial applications, these skid-mounted systems deliver unmatched flow, pressure, and durability for the most demanding cleaning environments.
🔧 Key Features & Benefits
- High-Performance Skid-Mounted Design
Built for permanent installations, trailers, and mobile cleaning systems - Extreme Cleaning Power
Engineered for high-flow, heavy-duty applications where standard units fall short - Dual Gun Capability (Optional)
Increase productivity by allowing two operators to clean simultaneously
⚙️ Built for Durability & Long Life
- HSS Models – Hotsy Belt-Drive Triplex Pump
- Proven reliability and performance
- Backed by a 7-year limited warranty
- HSDS Models – Hawk Pump (Low RPM)
- Designed for maximum longevity and reduced wear
- Ideal for continuous, high-demand operation
- Triple-Banded Belt Drive System
Ensures efficient power transfer and extended component life
🔥 High-Efficiency Heating System
- Schedule 80 Heating Coil
- 3/4″ heavy-duty coil with foil-backed insulation
- Stainless steel outer skin for durability
- Backed by a 5-year warranty
- Wayne Burner System
Provides consistent, high-output heat for removing grease, oil, and heavy contaminants
⚡ Powerful Engine Options
- Kubota Diesel Engines (16 HP & 24 HP)
- Electric start for easy operation
- Built for industrial reliability and long run times
- Dual Fuel Tanks
Extended runtime for long, uninterrupted cleaning cycles
🧰 Standard Equipment Included
- 50 ft. high-pressure hose
- Trigger gun and spray lance
- Multiple nozzle tips
- Ready-to-use configuration for immediate operation
🛡️ Certified for Safety & Reliability
- ETL Safety Certified for industrial use
- Designed for continuous operation in harsh environments
🏭 Ideal Applications
Perfect for:
- Oil & gas and heavy industry
- Mining and construction sites
- Large fleet and equipment cleaning
- Industrial wash systems and skid units
- Municipal and government operations
🔧 HSS Series Models
Built with Hotsy belt-drive triplex pumps, these models deliver proven reliability and long service life.
| Model | Part # | GPM | PSI | Engine | Burner | Pump | Hose | Dimensions (LxWxH) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| HSS-503069E | 1.110-604.0 | 5.0 | 3000 | Kubota Z602-E4B | 12V DC | HX5843R.2 | 50′ (3/8″) | 73″x37″x64″ | 1305 lbs |
| HSS-653569E | 1.110-605.0 | 6.5 | 3500 | Kubota D1105-E4B | 12V DC | HX8043R.2 | 50′ (3/8″) | 73″x37″x64″ | 1710 lbs |
| HSS-803069E | 1.110-606.0 | 8.0 | 3000 | Kubota D1105-E4B | 12V DC | HX9536R.2 | 50′ (1/2″) | 73″x37″x64″ | 1715 lbs |
| HSS-952569E | 1.110-607.0 | 9.5 | 2500 | Kubota D1105-E4B | 12V DC | HX1036R.2 | 50′ (1/2″) | 73″x37″x64″ | 1715 lbs |
⚙️ HSDS Series Models (Hawk Pump – Low RPM)
The HSDS Series features low-RPM Hawk pumps for enhanced durability and extended operational life in extreme conditions.
| Model | Part # | GPM | PSI | Engine | Burner | Pump | Hose | Dimensions (LxWxH) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| HSDS-503069E | 1.110-616.0 | 5.0 | 3000 | Kubota Z602-E4B | 12V DC | HHP2750R | 50′ (3/8″) | 73″x37″x64″ | 1610 lbs |
| HSDS-653569E | 1.110-617.0 | 6.5 | 3500 | Kubota D1105-E4B | 12V DC | HHP3650R | 50′ (3/8″) | 73″x37″x64″ | 2005 lbs |
| HSDS-803069E | 1.110-618.0 | 8.0 | 3000 | Kubota D1105-E4B | 12V DC | HFR40FR | 50′ (1/2″) | 73″x37″x64″ | 2015 lbs |
| HSDS-952569E | 1.110-619.0 | 9.5 | 2500 | Kubota D1105-E4B | 12V DC | HFR60FR | 50′ (1/2″) | 73″x37″x64″ | 2020 lbs |
🔥 Key Features & Benefits
- High Flow & High Pressure Output
Up to 9.5 GPM for large-scale cleaning and faster job completion - Kubota Diesel Engines
Reliable, fuel-efficient performance for industrial applications - 12V DC Burner Systems
Consistent hot water output for removing grease, oil, and heavy buildup - Belt-Drive Systems
Designed for long life and continuous-duty operation
⚠️ Important Note
- A 12V battery is required for operation (not included with unit)
🏭 Ideal Applications
Perfect for:
- Oil & gas operations
- Construction and mining
- Industrial wash bays
- Fleet and heavy equipment cleaning
- Trailer-mounted cleaning systems
🚀 Built for Maximum Output and Durability
The HSS & HSDS Super Skid Series provides industry-leading cleaning performance, rugged construction, and flexible configurations, making it the ultimate solution for high-demand industrial cleaning operations.
👉 Contact Us Today to configure the right Super Skid system for your application.
